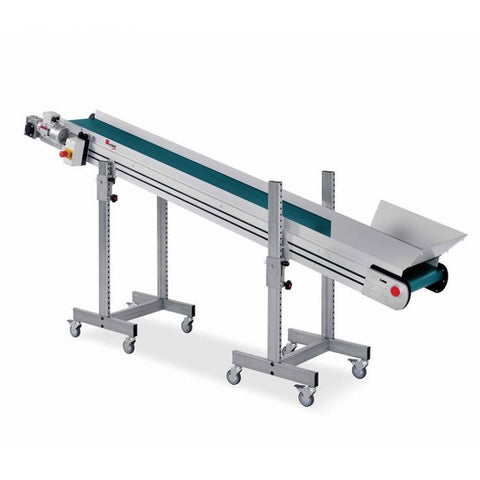

Inclined Conveyor with PU/PVC Belt
New range of conveyors with PU/PVC belt. The new conveyors offer a real solution to new demands from the current market.
Conveyor Request Form
| Dimensions | PO: from 500mm / to 7000mm (50mm increments) UT: from 190mm / to 790mm (50mm increments) |
| Frame | anodised extruded aluminium profile die cast aluminium alloy head supports |
| Sidewalls | anodised extruded aluminium profile |
| Stand support | die cast aluminium alloy clamps zinc plated steel legs castors with brakes |
| Belt | petrol green quadrangular pattern PVC max temperature resistance 80°C in continuous |
| Drive | direct (left side) 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor |
| Speed | 3,2 m/min |
| Control | Start - Stop |
