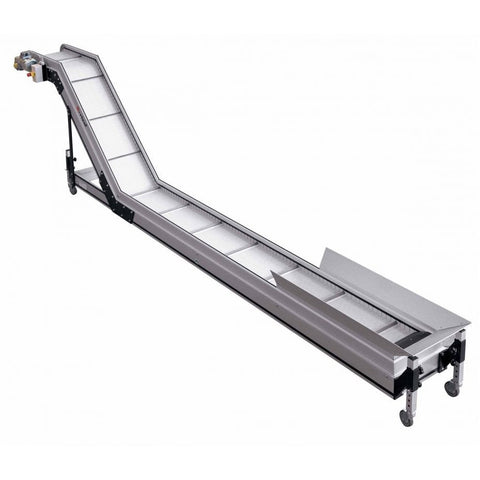

Inclined/Horizontal/Top Conveyor with PP/PA Modular Plastic Belt

Crizaf


Request A Quote

Conveyor Request Form

Dimensions from 9 pitch* (PO 500mm + PI 750mm + PZ 500mm)
to 22 pitch (UT ≤ 500mm) or 11 pitch (UT ≥ 600mm)
UT: from 200mm / to 800mm (50 mm increments)
*1pitch=378mm
Frame anodised extruded aluminium profile
die cast aluminium alloy head supports
zinc plated steel join supports
available fixed incline 30° - 45° - 60°
Sidewalls anodised extruded aluminium profile
Stand support RAL 9005 black painted clamps
zinc plated steel legs
castors
Belt

RAL 7035 grey embossed PP surface
integrated sidewalls
max temperature resistance 125°C in continuous
RAL 9005 black PU cleats

Drive direct (left side)
3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor
Speed 4 m/min
Control Start - Stop
