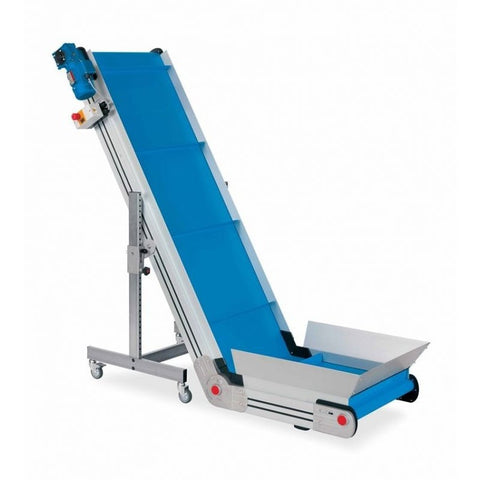

Inclined/Horizontal with PU/PVC Belt
New range of conveyors with PU/PVC belt. The new conveyors offer a real solution to new demands from the current market.
Conveyor Request Form
| Dimensions | PO: from 500mm / to 3500mm (50mm increments) PI: from 800mm / to 3500mm (50mm increments) UT: from 190mm / to 640mm (50mm increments) |
| Frame | anodised extruded aluminium profile die cast aluminium alloy head supports and hinges |
| Sidewalls | anodised extruded aluminium profile |
| Stand support | die cast aluminium alloy hinges and clamps zinc plated steel legs castors with brakes |
| Belt | RAL 5002 matte blue PU PU cleats max temperature resistance 100°C in continuous |
| Drive | direct (left side) 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor |
| Speed | 3,2 m/min |
| Control | Start - Stop |
