Inclined/Top Conveyor with PP/PA Modular Plastic Belt

Crizaf

Conveyor Request Form

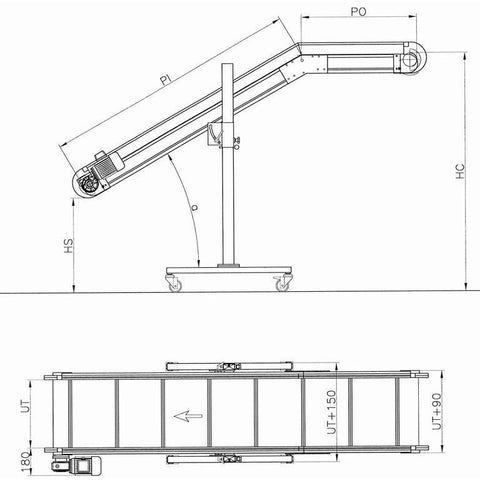

Dimensions	from 6 pitch* (PO 500mm + PI 650mm) to 22 pitch (UT ≤ 500mm) or 11 pitch (UT ≥ 600mm) UT: from 200mm / to 800mm (50 mm increments) *1pitch=378mm
Frame	anodised extruded aluminium profile die cast aluminium alloy head supports zinc plated steel join supports available fixed incline 30° - 45° - 60°
Sidewalls	anodised extruded aluminium profile
Stand support	zinc plated steel hinges and clamps zinc plated steel legs castors with brakes
Belt	RAL 7035 grey embossed PP surface integrated sidewalls max temperature resistance 125°C in continuous RAL 9005 black PU cleats
Drive	direct (left side) 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor
Speed	4 m/min
Control	Start - Stop
