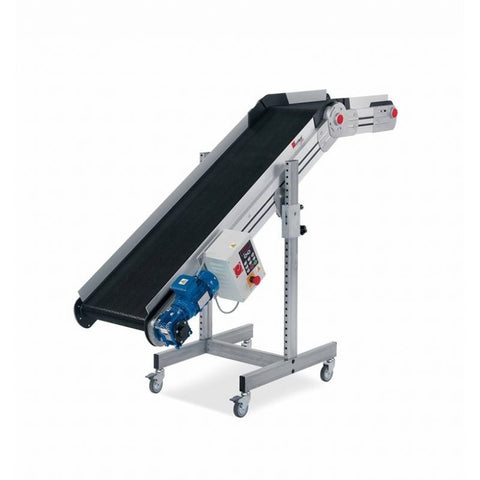

Inclined/Top Conveyor with PU/PVC Belt
New range of conveyors with PU/PVC belt. The new conveyors offer a real solution to new demands from the current market.
Conveyor Request Form
| Dimensions |
PO: from 450mm / to 3500mm (50mm increments) PI: from 1000mm / to 3500mm (50mm increments) UT: from 190mm / to 640mm (50mm increments) |
| Frame | anodised extruded aluminium profile die cast aluminium alloy head supports |
| Sidewalls | anodised extruded aluminium profile |
| Stand support | die cast aluminium alloy hinges and clamps zinc plated steel legs castors with brake |
| Belt | black thin wave pattern PVC max temperature resistance 80°C in continuous |
| Drive | direct (left side) 3 Phase – 400Vac/50Hz – 0.18kW – asynchronous motor |
| Speed | 3,2 m/min |
| Control | Start - Stop |
