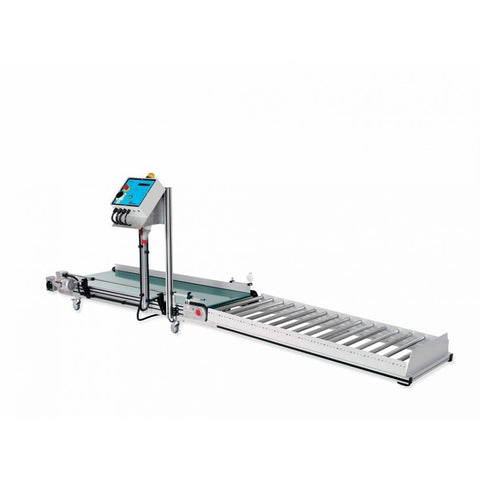

Longitudinal System
Linear filling and storage system made up from a linear conveyor and a gravitational roller conveyor.
| Conveyor frame | anodised extruded aluminium profile die cast aluminium alloy head supports |
| Sidewalls | 1 anodised extruded aluminium profile 1 stainless steel adjustable sidewall |
| Stand support | castors with brakes |
| Belt | green PVC max temperature resistance 80°C |
| Drive | direct (right side) 3 Phase - 400Vac/50Hz - 0,18kW asynchronous motor |
| Speed | 3,2 m/min |
| Sensor | photocell/refracting to detect the box in the filling position |
| Roller conveyor frame | anodised extruded aluminium profile extruded aluminium profile rollers supports extruded aluminium profile box stop |
| Control | TC130 |
