Longitudinal with Weighing System

Crizaf


Request A Quote

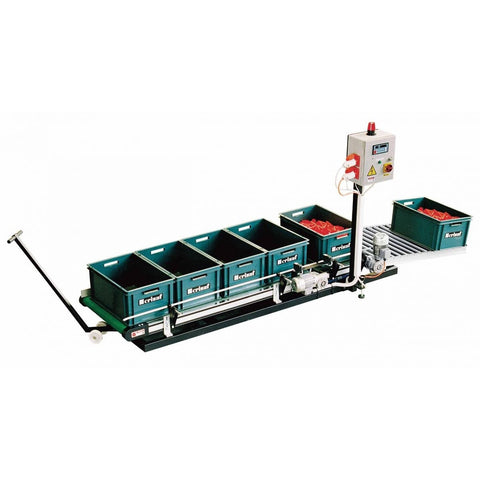

Linear filling and storage system with weighing station made up from a linear conveyor, a weighing station and a gravitational roller conveyor.

Frame anodised extruded aluminium profile
die cast aluminium alloy head supports
Sidewalls 1 anodised extruded aluminium profile
1 stainless steel adjustable sidewall
Stand support levelling elements
Weighing system load cells
Belt green PVC
max temperature resistance 80°C
Drive direct
3 Phase - 400Vac/50Hz - 0,18kW asynchronous motor
Speed 3,2 m/min (conveyor with empty boxes)
6,4 m/min (weighing station)
Sensor photocell/refracting to detect the box on the first conveyor
photocell/refracting to detect the box in the filling position (weighing station)
Roller conveyor frame anodised extruded aluminium profile
extruded aluminium profile rollers supports
extruded aluminium profile box stop
Control special
