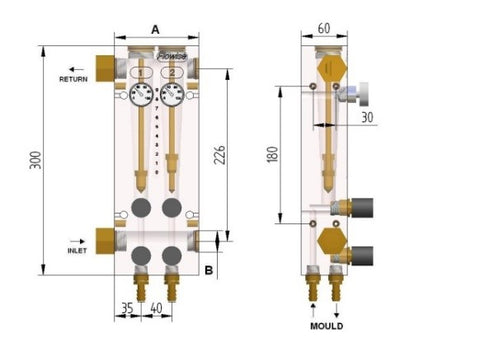

Series 5 *008 (Flow Rate 0-2.11 GPM)
Series 5 is a flow regulator with double manifold inlet/return and temperature control. It is the most compact size available in the market. Solenoid valves are optional and can be installed on each return circuit from the mold.
- Individual circuit regulation valves to eliminate flow fluctuations
- Internal composite floats along with external, adjustable sights glass tube ring
- Methacrylate with brass- aluminum components
- Mold connections with 3/8"G brass and hose fittings (10/13 mm)
- Maximum working pressure 20 bar
- Maximum working temperature 90° C
- Two manifolds
*008 model comes with aluminum floats.
