Electric Crane Transidrel 300B Series for Molds up to 30,000 kg
Electric crane for Plastics Injection Mold

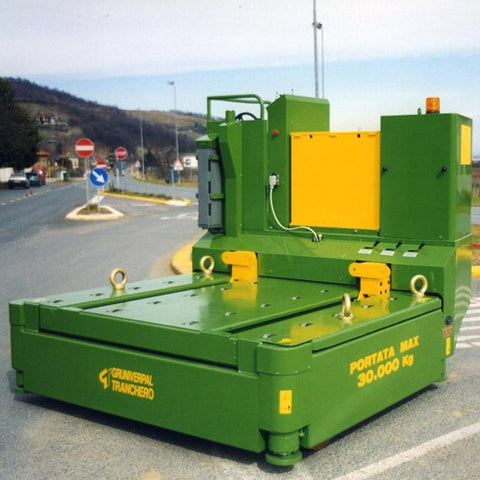

The Transidrel 300B is the mold lifting machine designed to lift and carry a load of up to 30,000 kg. Ideal for use in the plastic materials, mold lifting sector and for industrial maintenance applications.
The small size of the Transidrel 300B crane allows to achieve a high degree of performance in small spaces.
| Technical features | |
| Serie Transidrel 300B | |
| Hook capacity | 30,000 kg |
| Height min. of elevation hook | 700 mm (table) |
| Height max. of elevation hook | 950 mm (table) |
| Possibility of extension in height up to (optional) | 1,900 mm (table) |
| Standard telescopic extension | - |
| Capacity at max. standard telescopic extension | 30,000 kg |
| Telescopic extension up to (optional) | - |
| Capacity at max. telescopic extension (point 7) | - |
| Rotation: | - |
| Wheelbase: | 1,905 mm |
| Dimensions - length | 2,792 mm |
| Dimensions - width | 2,410 mm |
| Dimensions - height | 2,180 mm |
| Movement speed variable from: | From 0 to 100 m / min |
| Negotiable slope | 8% |
| Gradeability at full load | 3% |
| Front wheels | 4 x ø 600 x 200 mm |
| Rear wheels | 2 x ø 533 x 155 mm |
| Wheel material | Cushion |
| Driving traction | TWO WHEELS |
| Total weight | 14,200 kg |
| Electric motor power | 660 Ah / 48V |
| Traction battery | 900 Ah / 78V |
| Charger | 380/440 V -50/60 Hz |
| Acid battery | ● |
| GEL battery | ○ |
| Longer battery life | ○ |
| Proportional control of all movements | ● |
| Certification according to 2006/42 CE standard | ● |
| Production according to UL508 A standard | ● |
| Certification (from third party company) standard UL508 A | ○ |
| Hydraulic traction control | ● |
| Automatic braking system | ● |
| Anti-tipping safety system | ● |
| Pressure control safety valves | ● |
| Electrical emergency safety devices | ● |
| Winch (lifting capacity on request) | ○ |
| Wireless remote control | ○ |
| User manual and technical documentation | ● |
| Possibility to carry out all movements with the max. Load | ● |
