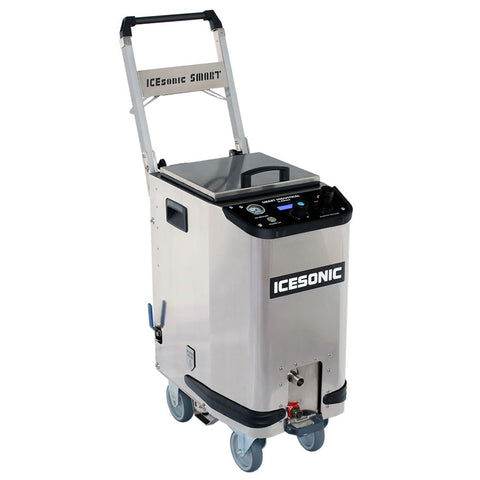

ICEsonic SMART Industrial

ICEsonic SMART Industrial

IceSonic


Request A Quote

SMART Industrial is capable to handle the most demanding surface preparation applications that require large compressed air consumption and offers true professional power. Air Supply from 0.5m³/min. (17 cfm) up to 4.5m³/min. (160 cfm) and maximum dry ice consumption 90 kg/h ( 200 lbs/h).

TECHNOLOGY

  • Powerful Single Hose Action
  • Uses Dry Ice Pellet Size From 1/16“ To 1/8” (1.5mm To 3mm)
  • Low Air Consumption (varies by nozzle size) from 17 cfm (at 30 Psi) 500l/Min (at 2 bar)

CONSTRUCTION

  • All Stainles Steel Construction
  • Heat Resistant Wheels
  • Heavy Duty Blasting Hose (Fire Protection Available on Request)
  • Industrial, VFD Controlled, El. Motor
  • MIL Spec. Electrical Connectors
  • Quick Coupling ¾“ Air Inlet
  • Foldable Handle

OPERATION

  • Variable Dry Ice Feed With LED Display – up to 200lbs/H (90kg/H)
  • Variable Blasting Pressure Easily Adjusted on a Control Pannel
  • Built-in 40 Microns Filter
  • Blasting Hose Management System
  • Blasting Pressure Gauge, Power And Blasting Lights
  • Vibrator Ensures Operation Without Dry Ice Hopper Clogging
  • Air Feed Shutoff Valve

SPECIFIATIONS

  • Dry Ice Consumption 0 – 200lbs/h (0-90 kg/h)
  • Minimum Air Supply: 17 cfm (0,5m³/min)
  • Minimum Air Pressure: 30 psi (2 bar)
  • Maximum Air Supply: 160 cfm (4,5 m³/min)
  • Maximum Air Pressure: 230 psi (1600 kPa/16 bar)
  • Insulated Dry Ice Hopper Holds up to 33 lbs (15 kg)

SIZE

  • Blaster: 14x23x30” (370X580X780mm)
  • Blaster With Raised Handle: 14x25x45” (370x650x1150mm)

WEIGHTS

  • Machine Only: 150 lbs (68 kg)

PACKAGE INCLUDES:

  • Dry Ice Blasting Unit
  • 16 ft. (5 m) Blasting Hose
  • Applicator
  • 0.3” (8.0 mm) Medium Flow Round Nozzle
ML.SM80 SM.G.200 77S.08





$19,300.00
