ELECTRIC CRANE FOR PLASTICS INJECTION MOLD

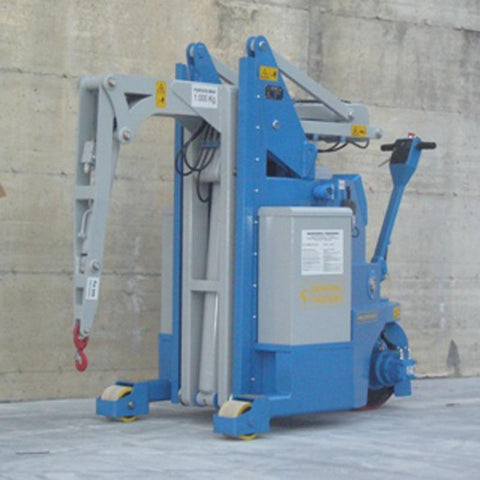

The MINIDREL 20S_STD is the electric crane for lifting molds designed to lift and carry a load of up to 2,000 kg.


The ad hoc solution for lifting where absolute precision of positioning of the mold in the press is required: from plastic companies to aluminum foundries.

Technical features
Hook capacity 2.000 Kg
Height min. of elevation hook 1,500 mm
Height max. of elevation hook 2,850 mm
Possibility of extension in height up to (optional) -
Standard telescopic extension 1,500 mm
Capacity at max. standard telescopic extension 700 Kg
Telescopic extension up to (optional) 5,000 mm
Capacity at max. telescopic extension (point 7) 160 Kg
Rotation: -
Wheelbase: 1,250 mm
Dimensions - length 1,610 mm
Dimensions - width 950 mm
Dimensions - height 1,850 mm
Movement speed variable from: From 0 to 60 m / min
Negotiable slope 8%
Gradeability at full load 3%
Front wheels 2 x Ø 160 x 80 mm
Rear wheels 1 x Ø 450 x 110 mm
Wheel material Polyurethane
Driving traction REAR WHEEL
Total weight 3,200 Kg
Electric motor power 3.0 KW / 24 cc.
Traction battery 280 Ah / 24 V
Charger 110/240 V -50/60 Hz
Acid battery -
GEL battery
Longer battery life
Proportional control of all movements
Certification according to 2006/42 CE standard
Production according to UL508 A standard
Certification (from third party company) standard UL508 A
Hydraulic traction control
Automatic braking system
Anti-tipping safety system
Pressure control safety valves
Electrical emergency safety devices
Winch (lifting capacity on request)
Wireless remote control
User manual and technical documentation
Possibility to carry out all movements with the max. Load
