ELECTRIC CRANE FOR PLASTICS INJECTION MOLD

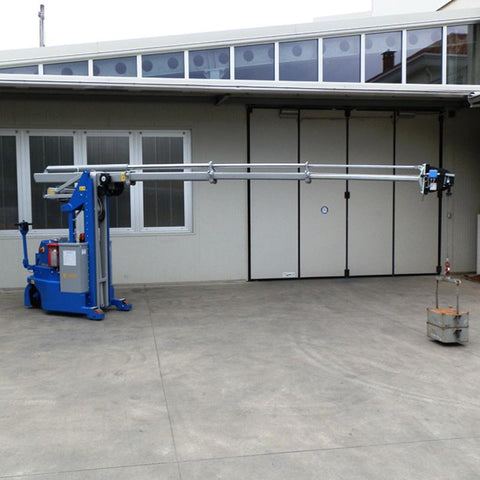

The MINIDREL 20SL_HG  is the mold lifting machine  designed to lift and carry a load of up to 2,000 kg. Ideal  for use in the plastic materialsmold lifting sector and for industrial maintenance applications..


The small size of the MINIDREL 20SL_HG crane  allows to achieve  a high degree of performance in small spaces.

Technical features
Hook capacity 2.000 Kg
Height min. of elevation hook 1,800 mm
Height max. of elevation hook 3,600 mm
Possibility of extension in height up to (optional) -
Standard telescopic extension 1,500 mm
Capacity at max. standard telescopic extension 1.000 Kg
Telescopic extension up to (optional) 5,000 mm
Capacity at max. telescopic extension (point 7) 225 Kg
Rotation: -
Wheelbase: 1,500 mm
Dimensions - length 1,860 mm
Dimensions - width 950 mm
Dimensions - height 2,320 mm
Movement speed variable from: From 0 to 60 m / min
Negotiable slope 8%
Gradeability at full load 3%
Front wheels 2 x Ø 160 x 80 mm
Rear wheels 1 x Ø 450 x 110 mm
Wheel material Polyurethane
Driving traction REAR WHEEL
Total weight 3,600 Kg
Electric motor power 3.0 KW / 24 cc.
Traction battery 360 Ah / 24 V
Charger 110/240 V -50/60 Hz
Acid battery -
GEL battery
Longer battery life
Proportional control of all movements
Certification according to 2006/42 CE standard
Production according to UL508 A standard
Certification (from third party company) standard UL508 A
Hydraulic traction control
Automatic braking system
Anti-tipping safety system
Pressure control safety valves
Electrical emergency safety devices
Winch (lifting capacity on request)
Wireless remote control
User manual and technical documentation
Possibility to carry out all movements with the max. Load
