ELECTRIC CRANE FOR PLASTICS INJECTION MOLD

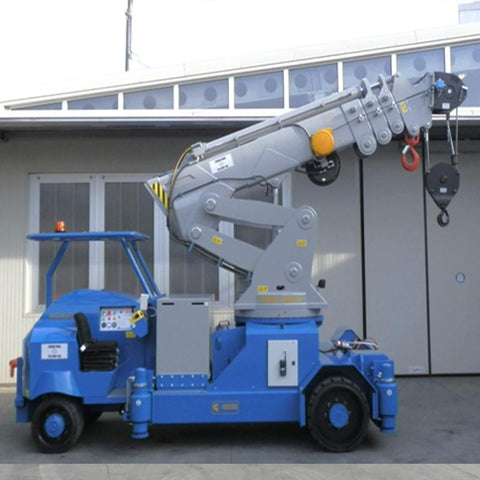

The MINIDREL 250B_TRS  is the mold lifting machine designed to lift and carry a load of up to 25,000 kg. Ideal  for use in the plastic materialsmold lifting sector and for industrial maintenance applications.


The small size of the MINIDREL 250B_TRS  crane allows to achieve  a high degree of performance in small spaces.

Technical features
Hook capacity 25.000 Kg
Height min. of elevation hook 1,200 mm
Height max. of elevation hook 8,500 mm
Possibility of extension in height up to (optional) 10.500 mm
Standard telescopic extension 5,500 mm
Capacity at max. standard telescopic extension 5.400 Kg
Telescopic extension up to (optional) 7,200 mm
Capacity at max. telescopic extension (point 7) 3,600 Kg
Rotation: 210 °
Wheelbase: 3,250 mm
Dimensions - length 4,550 mm
Dimensions - width 2,300 mm
Dimensions - height 2,890 mm
Movement speed variable from: From 0 to 100 m / min
Negotiable slope 8%
Gradeability at full load 3%
Front wheels 4 x ø711 x 305 mm
Rear wheels 2 x ø660 x 356 mm
Wheel material Cushion
Driving traction SIX WHEELS
Total weight 24.400 Kg
Electric motor power 24.0 KW / 78 cc.
Traction battery 900 Ah / 78V
Charger 380/440 V -50/60 Hz
Acid battery
GEL battery
Longer battery life
Proportional control of all movements
Certification according to 2006/42 CE standard
Production according to UL508 A standard
Certification (from third party company) standard UL508 A
Hydraulic traction control
Automatic braking system
Anti-tipping safety system
Pressure control safety valves
Electrical emergency safety devices
Winch (lifting capacity on request)
Wireless remote control
User manual and technical documentation
Possibility to carry out all movements with the max. Load
