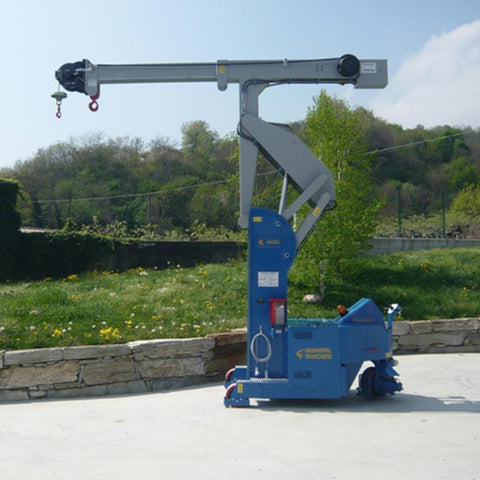

Electric Crane Minidrel 40S_HG Series for Molds up to 4,000 kg (8800 lbs)
ELECTRIC CRANE FOR PLASTICS INJECTION MOLD
The MINIDREL 40S_HG is the mold lifting machine designed to lift and carry a load of up to 4,000 kg. Ideal for use in the plastic materials, mold lifting sector and for industrial maintenance applications.
The small size of the MINIDREL 40S_HG crane allows to reach a high degree of performance in small spaces.
Technical features | |
Hook capacity | 4,000 Kg |
Height min. of elevation hook | 2,400 mm |
Height max. of elevation hook | 4,800 mm |
Possibility of extension in height up to (optional) | 5,000 mm |
Standard telescopic extension | 1,350 mm |
Capacity at max. standard telescopic extension | 4,000 Kg |
Telescopic extension up to (optional) | 3,600 mm |
Capacity at max. telescopic extension (point 7) | 1,350 Kg |
Rotation: | - |
Wheelbase: | 2,000 mm |
Dimensions - length | 2,470 mm |
Dimensions - width | 1,430 mm |
Dimensions - height | 2.850 / 2.950 / 3.050 mm |
Movement speed variable from: | From 0 to 60 m / min |
Negotiable slope | 8% |
Gradeability at full load | 3% |
Front wheels | 2 x Ø300 x 140 mm |
Rear wheels | 1 x Ø 450 x 180 mm |
Wheel material | Polyurethane |
Driving traction | REAR WHEEL |
Total weight | 6.300 Kg |
Electric motor power | 5.0 KW / 24 cc. |
Traction battery | 420 Ah / 24 V |
Charger | 110/240 V -50/60 Hz |
Acid battery | ● |
GEL battery | ○ |
Longer battery life | ○ |
Proportional control of all movements | ● |
Certification according to 2006/42 CE standard | ● |
Production according to UL508 A standard | ● |
Certification (from third party company) standard UL508 A | ○ |
Hydraulic traction control | ● |
Automatic braking system | ● |
Anti-tipping safety system | ● |
Pressure control safety valves | ● |
Electrical emergency safety devices | ● |
Winch (lifting capacity on request) | ○ |
Wireless remote control | ○ |
User manual and technical documentation | ● |
Possibility to carry out all movements with the max. Load | ● |
